- Jmc ford
- China, Hubei
- around 10 working days
- 500 units one year
Ambulance vehicle is a special type of rescue vehicle with first aid equipment. JMC ford Ambulance vehicle is mainly used to transport critically ill patients and the wounded to the hospital for treatment.
Ambulance vehicle can be divided into simple transportation type and high-grade monitoring type according to the scope of use and requirements. The medical equipment equipped with ambulance vehicle is different. Usually is customized according to the user' requirements.
For fighting COVID-19 epidemic, can be equipped with negative-pressure syste and, filtering and disinfecting system which make the medical cabin form an atmospheric low pressure difference relative to the external environment, to avoid cross infection of the medical staff.

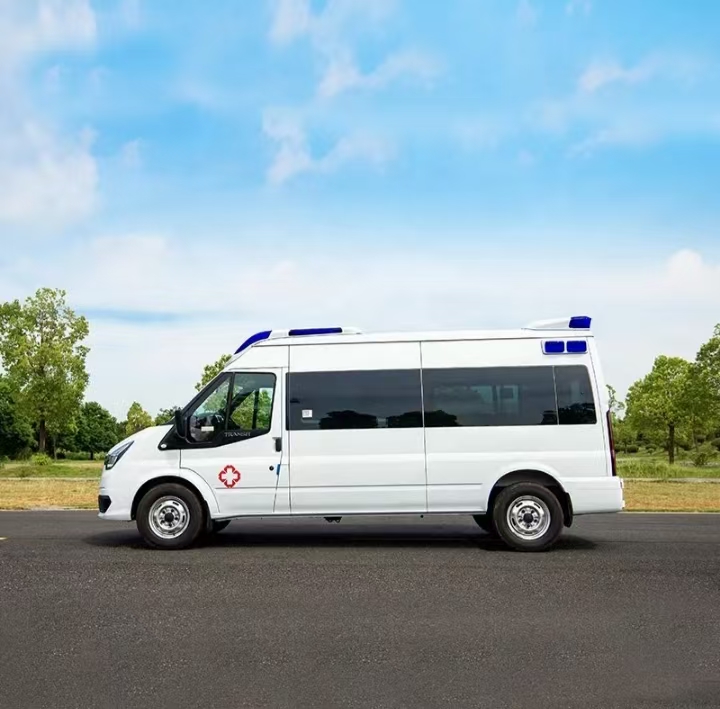

JMC ford diesel ambulance vehicle
ambulance vehicle is also called ambulance car, is a special vehicle with the main purpose of treating patients
Product Feature
Jmc ford Ambulance vehicle adopt JMC FORD commercial van car chassis
Jmc ford Ambulance vehicle can be customized according to the user's detailed requirements
Main parameter
Product Name | JMC FORD ambulance vehicle |
Driving Type | 4×2 |
Weight | |
Curb weight(kg) | 3000 |
Dimensions | |
Wheelbase(mm) | 3300 |
Overall Dimension(mm) | 5341×2032×2407(2630) |
Engine | |
Engine brand & model | DURATORQ4D205L |
Fuel type | diesel |
Displacement(L)/Power(kw) | 1.988/89 |
Chassis | |
Axle Quantity | 2 |
Transmission Type | 5 forwards,1 reverse gear, manual or Automatic |
Steering Type | LHD with power steering |
Brake system | hydraulic brake |
Tire Spec. & size | 215/75R16LT , 4 with a spare |
Cab | |
Standard configuration | Flat proof, DVD+GPS navigation/sound system and so on |
Air conditioning | Have |
Basic configuration | ||
Cooling and heating System | 1 | Medical cabin high-power straight air conditioning and heating system |
Circuit and electrical appliance | ||
Alarm and warning system | 1 | Long-row police lights installed at the front of the roof |
2 | 100W Alarm and hand-held control | |
3 | big blue and white square strobe lights at the left and right side separately | |
4 | big blue square strobe lights at the rear left and right side separately | |
Power System inside vehicle | 3 | The 2nd power system for medical cabin |
4 | Cab Emergency kick-start system | |
5 | 1000W Sine wave inverter system | |
6 | 16A external charging system | |
7 | integrated circuit control and protection system | |
8 | AC circuit protection system | |
9 | Medical cabin integrated rocker switch control panel | |
10 | 3pcs of power terminals 220V,Chinese standard | |
11 | 32pcs of power terminals 12V,Chinese standard | |
12 | 4pcs of long lighting lamps on top | |
13 | 1pc of rectangular sterilization lamp with delaying system | |
14 | 1pc of two-way ventilating fan | |
Oxygen Pipeline and Oxygen | ||
Oxygen supplying system | 1 | 2pcs of 10 liter medical oxygen cylinders and special shock-absorbing clamps |
2 | 2pcs of pressure release valves for oxygen | |
3 | Hidden Oxygen pipeline system | |
4 | 2pcs of Oxygen terminals with Chinese standard | |
5 | 1pc of Oxygen humidifying bottle | |
About Medical cabin | ||
Medical cabin Interior | 1 | Original vehicle equipment: air conditioners for car and medical cabin separately |
2 | Special-shaped partition wall made from polymer material | |
3 | Sliding window on partition wall for observation | |
4 | PVC material hanging cabinet on top of the left side | |
5 | PVC plate Medical equipment cabinet in the middle of the left side | |
6 | PVC plate Oxygen cabinet standing at the rear of the left side | |
7 | Pre-buried safety parts for whole vehicle | |
8 | PVC material for top and side wall | |
9 | Blue floor leather special for medical industry with traits of cleanable, wear-resistant and eco-friendly. | |
Seat System | ||
Seat | 1 | 2-person long soft seat on right side with safety belt |
2 | 1pc of single seat | |
First Aid System | ||
Medical System | 1 | Automatic boarding stretcher |
2 | Stretcher pad and guide board | |
3 | Adjustable infusion slide rail with infusion rack | |
4 | Fire extinguishers | |
5 | Negative pressure system | |
Exterior | ||
Vehicle Exterior | 1 | Black solar film on left side and translucent matte film on right and rear side, applied with medical exterior standard |
2 | Red reflective color ribbon(customization acceptable） | |
Product detail
Interior photo of ambulance vehicle
Batch exported ambulance vehicle
